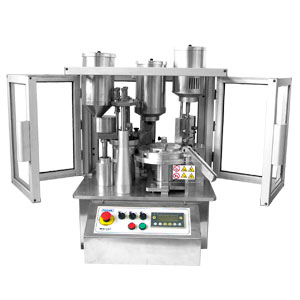

LABSCALE CAPSULE FILLING MACHINE

Mini CAP Salient Features

Maximum Output of 3000 capsules / hour*
Auto Rejection of Unopened Capsule
Change Over Time 50 Minutes
No Tools required for the changeover
Perfect Machine for R&D Lab / Process Development Labs / Small Size Production for Trial Research, Small Batch Production
Machine Manufactured as per CE & GMP Norms
Validation IQ/OQ available upon request

MODEL	MINI CAP
OUTPUT CAPSULES / HOUR *	MAX. 3000
CAPSULES SIZE	00-0-1-2-3-4.
ELECTRIC VOLTAGE	230 VOLTS SINGLE PHASE, 50 / 60HZ.
AC MOTOR	90 WATT 1400 RPM 230 VOLTS / 3PH
RATED POWER	0.75 KW (INCLUDING THE VACCUM PUMP)
VACUUM PUMP FOR CAP. OPENING	CAPACITY 6 M3 / HOUR (VTE-6)
ASPIRATING VACCUM PUMP	CAPACITY 90 M3 / HOUR DELTA P.120 MILLIBAR
AIR COMPRESSOR	50 LITER / MINUTE WORKING PRESSURE 1.5 BAR.
NET WEIGHT	130 KGS. APPROX.
GROSS WEIGHT	170 KGS. APPROX.
PACKING CASE DIMENSIONS	1000 X 750 X 950 MM
POSSIBLE DOSING COMBINATIONS	POWDER; PELLETS; POWDER + PELLETS
