Capacity : Granulates 25 ltrs. to 700 ltrs. (from 10 kgs. to 300 kgs.)

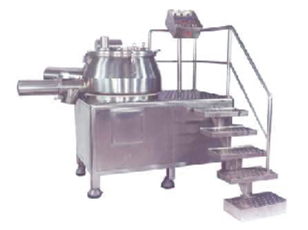

Anchor Mark's RAPIDMIX -- High Shear Mixer Granulator is a versatile machine developed for mixing as well as granulation of ingredients. The multi-bladed dual speed impeller is fitted close to the base of the mixing bowl whereas the chopper is mounted on the wall of the mixing bowl. The high speed impeller running close to the base of the mixing bowl together with the chopper functioning as a cutting tool, takes the form of a goblet. Both the impeller as well as the chopper have dual-speed options for gently distributing the granulating solution as it is added and for fluidizing the charge and creating the vortex of the material being mixed by both vertical and horizontal components. Without the action of chopper, the mass would rapidly assume a fairly heavy consistency as would be obtained in a conventional kneader.
SALIENT FEATURES
Design and finish comply with GMP standards.
Integration of dry blending and wet granulation processes into one-step mixing and granulation.
Consistent and predictable quality in every batch.
Controlled and enclosed mixing complying to CGMP standards.
Precision engineering to minimise clearance between bowl and impeller.
The machine is supplied with standard manual controls. It can also be supplied with Programmable Logic Control [PLC] system as an optional.
Dual-speed option for the Impeller as well as Chopper to ensure outstanding results for different types of products.
Special air-purged GMP shaft seals keep powder well away from mechanical drives and prevent product contamination.
Built-in piping and drainage system for thorough cleaning and flushing of water through both drive shaft seals without the need to remove these seals.
All product contact parts are in stainless steel grade 316 quality and non-contact parts are covered in stainless steel grade 304 quality material.
